| ชื่อแบรนด์: | RESKY |
| เลขรุ่น: | LP802035 |
| ขั้นต่ำ: | 10pcs |
| ราคา: | โปร่ง |
| รายละเอียดการบรรจุ: | แพคเกจถาดตุ่มพร้อมกล่องกระดาษ |
| เงื่อนไขการจ่ายเงิน: | Western Union, T/T |
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 500mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 500mAh 0.2C Discharge |
| 5 | Charge current |
Standard Charging:0.2C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time |
Standard Charging:2.75hours(Ref. )Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 0.5C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature |
Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:35±0.5mm (not including tabs) Width:20±0.5mm Thickness:8±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥800times |
Product features:
1. High security performance
2. Thin thickness, adjustable thickness
3. Lightweight
4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved
5. Low internal resistance and long cycle life
6. Flexible size available
7. Good discharge performance
Application areas:
Bluetooth earphones, smart wearables, GPS navigation devices, POS machines, power banks, learning devices, tablets, car navigation, MP3,MP4,MP5, Card insertion speaker, wireless mouse, Xiaomi display screen PSP built-in battery, Apple peripheral power supply, tablet computer, mobile DVD, laptop battery, wireless monitoring device, medical equipment, various instruments and meters, LED lamps, traffic signs, portable small appliances, various DIY instruments and meters, metal detectors, and other digital battery products.

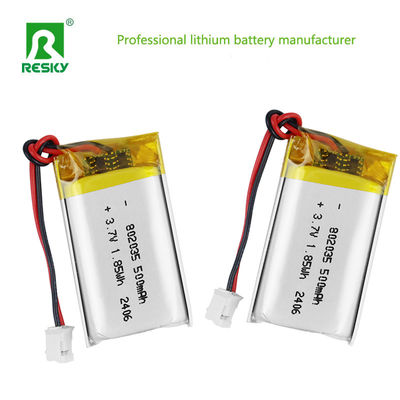

Product pictures:
|
| ชื่อแบรนด์: | RESKY |
| เลขรุ่น: | LP802035 |
| ขั้นต่ำ: | 10pcs |
| ราคา: | โปร่ง |
| รายละเอียดการบรรจุ: | แพคเกจถาดตุ่มพร้อมกล่องกระดาษ |
| เงื่อนไขการจ่ายเงิน: | Western Union, T/T |
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 500mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 500mAh 0.2C Discharge |
| 5 | Charge current |
Standard Charging:0.2C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time |
Standard Charging:2.75hours(Ref. )Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 0.5C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature |
Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:35±0.5mm (not including tabs) Width:20±0.5mm Thickness:8±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥800times |
Product features:
1. High security performance
2. Thin thickness, adjustable thickness
3. Lightweight
4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved
5. Low internal resistance and long cycle life
6. Flexible size available
7. Good discharge performance
Application areas:
Bluetooth earphones, smart wearables, GPS navigation devices, POS machines, power banks, learning devices, tablets, car navigation, MP3,MP4,MP5, Card insertion speaker, wireless mouse, Xiaomi display screen PSP built-in battery, Apple peripheral power supply, tablet computer, mobile DVD, laptop battery, wireless monitoring device, medical equipment, various instruments and meters, LED lamps, traffic signs, portable small appliances, various DIY instruments and meters, metal detectors, and other digital battery products.

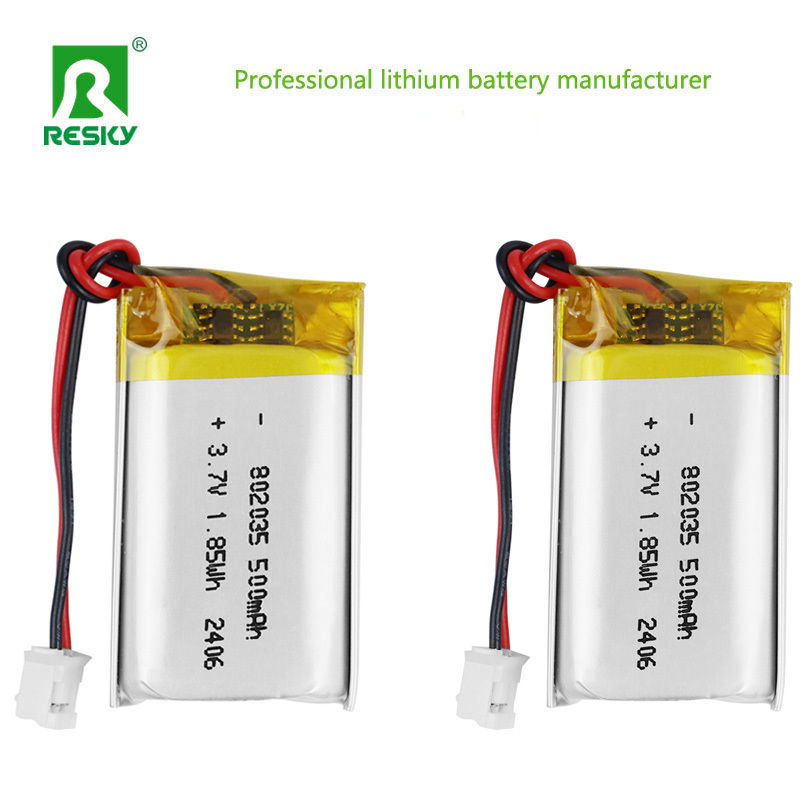

Product pictures:
